ACOUSTIC WOOD PANELS & PLANKS

  • Acoustically absorptive, reflective and diffusive wood surfaces
  • American made and sourced
  • FSC certified, Class A fire rated

USAkoustik Advantages

Finishes

  • USAkustik utilizes a top-of-the-line spray finishing system with automatic spray guns all in an enclosed chamber. USAkustik has implemented strict manufacturing procedures and processes to address and avoid the common finishing issues and we take great pride in the superior quality our finishing system provides.
  • Our opaque finish is offered as WDMA OP-4 / AWS system 5 and we can match any color. This finish is often referred to as “paint”.  Industry standards do not recognize “paint” as a finish system, only opaque finishes, as “paint” is too generic of a term to be used as a designated architectural grade finish.

Manufacturing Options

  • With our combination of hand craftsmanship and technology, USAkustik is well-equipped to meet any project requirement.
  • Our in-house veneer lay up ensures superior quality control, shortens lead times, and provides us with greater opportunities to produce unique custom designs.
  • Our facilities can premachine, cut-to-size, edge band, and prefinish architectural acoustic paneling up to 72″ wide by 192″ long on a variety of core types. We are also able to manufacture curved veneered panels and custom acoustic shapes.

Veneers

  • USAkustik is renowned for having the widest selection of hardwood veneer species. Whether it’s popular domestics or rare exotics, USAkustik has the experience, craftsmanship and quality control to not only bring out but also enhance the beauty of any specie of veneer you choose. From basic slip and book matches to the most intricate designs and inlays, our capabilities always result in the most beautiful veneered products.
  • Our in-house lay-up of our own veneer faces is your assurance of superior quality. It allows for fast and effective customization of your designs. Additionally, we are able to provide you with a wide range of crotches and burls.

Products

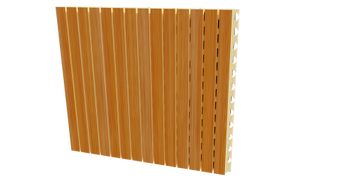

MD0902 9/2 Planks

  • American made and sourced
  • 9 mm finished face with 2 mm grooves
  • 9” wide x 3/4” thick plank with tongue and groove joint
  • 8’ or 10’ standard lengths
  • Kiss-Clip® compatible for wall or ceilings
  • Class A MDF core (ASTM-E84), non-rated cores optional
  • Available with natural or composite veneers (FSC optional)
  • Custom stain to match or opaque colored finishes
  • UV finish coat

MD1303 13/3 Planks

  • American made and sourced
  • 13 mm finished face with 3 mm grooves
  • 9” wide x 3/4” thick plank with tongue and groove joint
  • 8’ or 10’ standard lengths
  • Kiss-Clip® compatible for wall or ceilings
  • Class A MDF core (ASTM-E84), non-rated cores optional
  • Available with natural or composite veneers (FSC optional)
  • Custom stain to match or opaque colored finishes
  • UV finish coat

MD1402 14/2 Planks

  • American made and sourced
  • 14 mm finished face with 2 mm grooves
  • 9” wide x 3/4” thick plank with tongue and groove joint
  • 8’ or 10’ standard lengths
  • Kiss-Clip® compatible for wall or ceilings
  • Class A MDF core (ASTM-E84), non-rated cores optional
  • Available with natural or composite veneers (FSC optional)
  • Custom stain to match or opaque colored finishes
  • UV finish coat

MD2804 28/4 Planks

  • American made and sourced
  • 28 mm finished face with 4 mm grooves
  • 9” wide x 3/4” thick plank with tongue and groove joint
  • 8’ or 10’ standard lengths
  • Kiss-Clip® compatible for wall or ceilings
  • Class A MDF core (ASTM-E84), non-rated cores optional
  • Available with natural or composite veneers (FSC optional)
  • Custom stain to match or opaque colored finishes
  • UV finish coat

LF110 Low Frequency Planks/Panels

  • American made and sourced
  • Acoustically tuned dual diameter perforated face
  • 110 Hz peak absorption
  • 9” wide x 3/4” thick plank with tongue and groove joint
  • 8’ or 10’ standard lengths
  • Acoustic panels up to 72″ wide by 192″ long
  • Kiss-Clip® compatible for wall or ceilings
  • Class A MDF core (ASTM-E84), non-rated cores optional
  • Available with natural or composite veneers (FSC optional)
  • Custom stain to match or opaque colored finishes
  • UV finish coat

QR13 A/B Diffuser Planks

  • Prime 13 sequence (1 ‘A’ and 1 ‘B’ unit must be joined to form complete sequence)
  • 1200 Hz lower diffusion limit
  • Seamless joining with other USAkoustik planks
  • 9” wide x 1-1/2” thick plank with tongue and groove joint
  • 8’ or 10’ standard lengths
  • Kiss-Clip® compatible for wall or ceilings
  • Class A MDF core (ASTM-E84), non-rated cores optional
  • Available with natural or composite veneers (FSC optional)
  • Custom stain to match or opaque colored finishes
  • UV finish coat

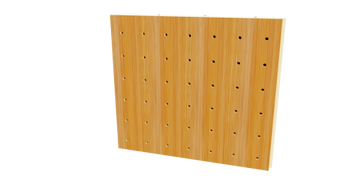

MP05PL Microperforated Planks/Panels

  • American made and sourced
  • 0.5 mm microperforated finished face
  • 9” wide x 3/4” thick plank with tongue and groove joint
  • 8’ or 10’ standard lengths
  • Acoustic panels up to 72″ wide by 192″ long
  • Kiss-Clip® compatible for wall or ceilings
  • Class A MDF core (ASTM-E84), non-rated cores optional
  • Available with natural or composite veneers (FSC optional)
  • Custom stain to match or opaque colored finishes
  • UV finish coat

RFL9 Reflective Planks/Panels

  • American made and sourced
  • 9” wide x 3/4” thick plank with tongue and groove joint
  • 8’ or 10’ standard lengths
  • Acoustic panels up to 72″ wide by 192″ long
  • Kiss-Clip® compatible for wall or ceilings
  • Class A MDF core (ASTM-E84), non-rated cores optional
  • Available with natural or composite veneers (FSC optional)
  • Custom stain to match or opaque colored finishes
  • UV finish coat
